| Pattern | Size | PR | LI&SS | Overall Diameter(mm) |
Load Capacity(kg) | Inflation Pressure(kpa) | Section Width (mm) |
Standard Rim (inch) |
Tread Depth (mm) | |
| Single | Dual | |||||||||

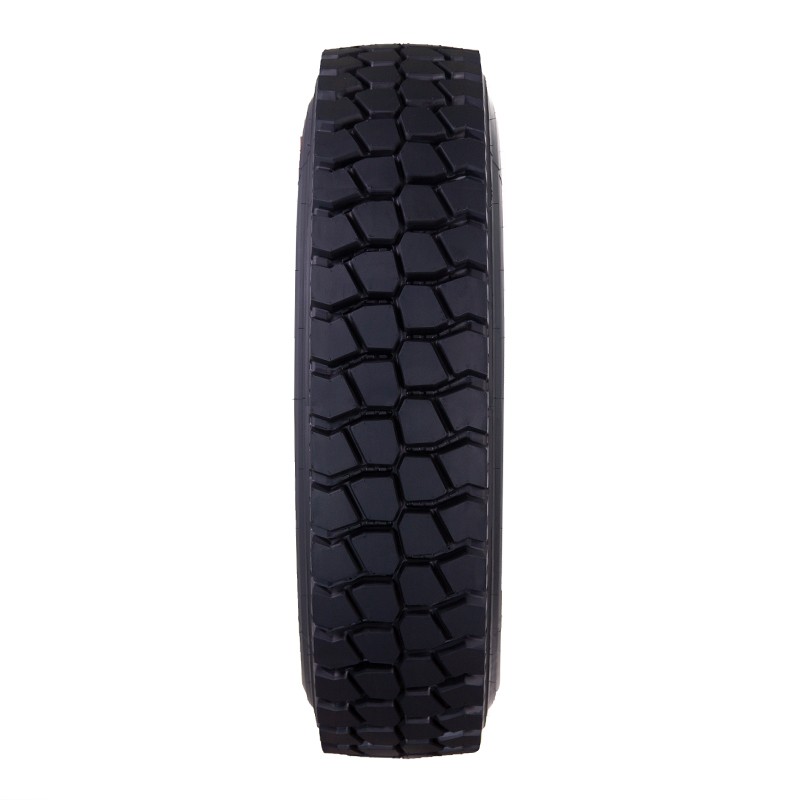

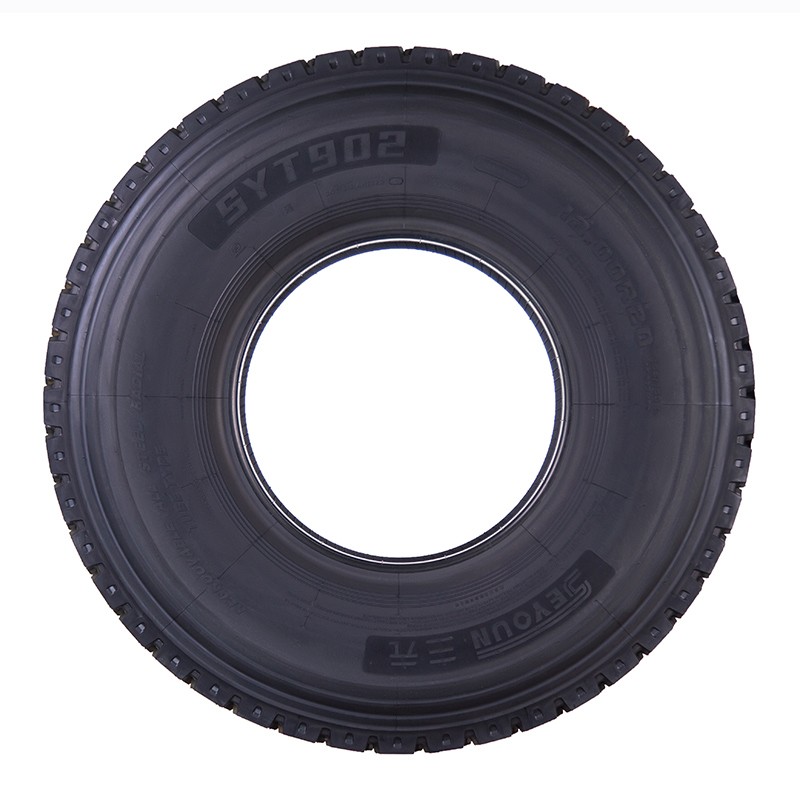

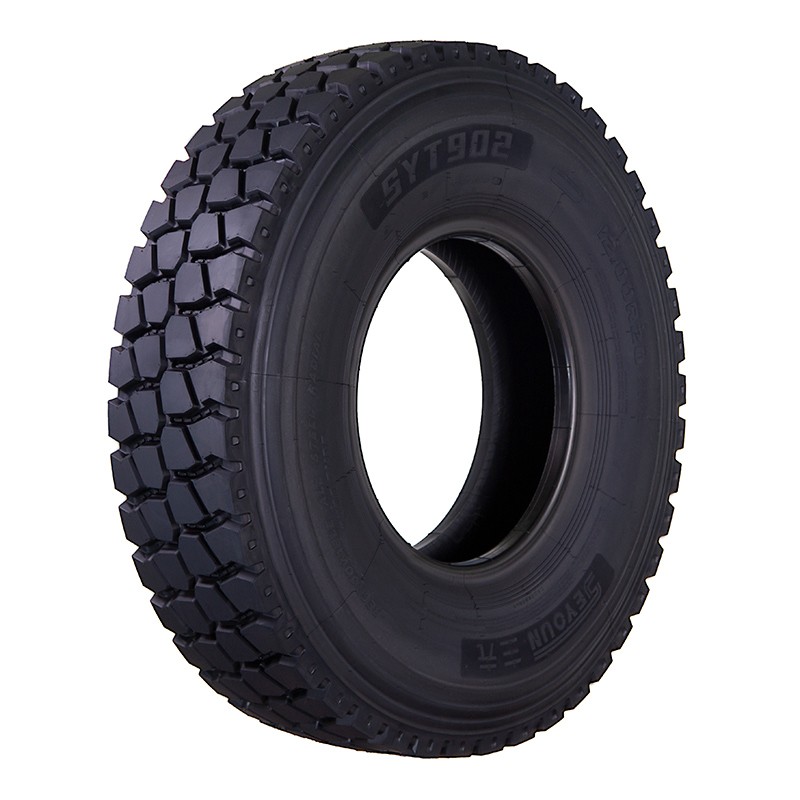

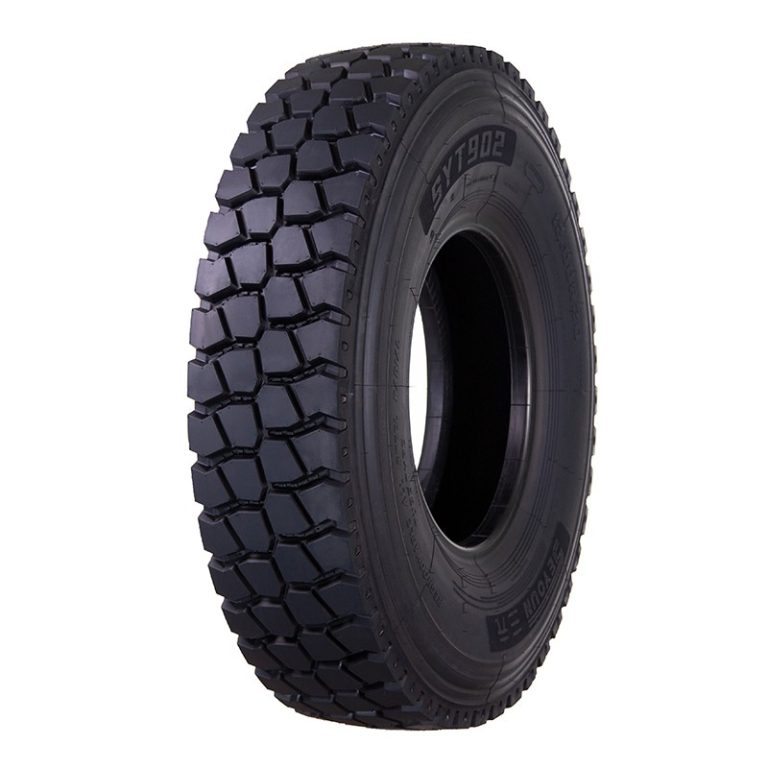

| SYT902 | 9.00R20 | 16 | 144/142K | 1,019 | 2,800 | 2,650 | 900 | 259 | 7.0 | 17.5 |
| 10.00R20 | 18 | 149/146K | 1,054 | 3,250 | 3,000 | 930 | 278 | 7.5 | 18.5 | |
| 11.00R20 | 18 | 152/149K | 1,085 | 3,550 | 3,250 | 930 | 293 | 8.0 | 17.5 | |
| 12.00R20 | 20 | 156/153K | 1,125 | 4,000 | 3,650 | 900 | 315 | 8.5 | 19.5 | |
| 12R22.5 | 18 | 152/149K | 1,085 | 3,550 | 3,250 | 930 | 300 | 9.0 | 19 | |
| 13R22.5 | 18 | 154/151K | 1,124 | 3,750 | 3,450 | 830 | 330 | 9.75 | 20 | |
As a rubber production combined with steel and other materials, tires can be eroded slowly by chemicals, oil, heat, and ozone. The main raw materials of tires include natural rubber and synthetic rubber from petroleum products, so tires exposed to high temperatures heat or fire sources will cause fires that are difficult to extinguish.
Tires should be stored in a cool, dry, clean warehouse to prevent rain, dust, and light. Tires should be placed away from electric generators/motors and sources of heat such as hot pipes. Storage surfaces should be clean and free of grease, gasoline, diesel fuel, or other substances that can deteriorate the rubber. Please rotate tires every month if they are upright in storage. If tires have to be stored outdoors, the place should be:
Improper storage can damage your tires in ways that may not be visible and can lead to a
failure resulting in serious personal injury or death.
